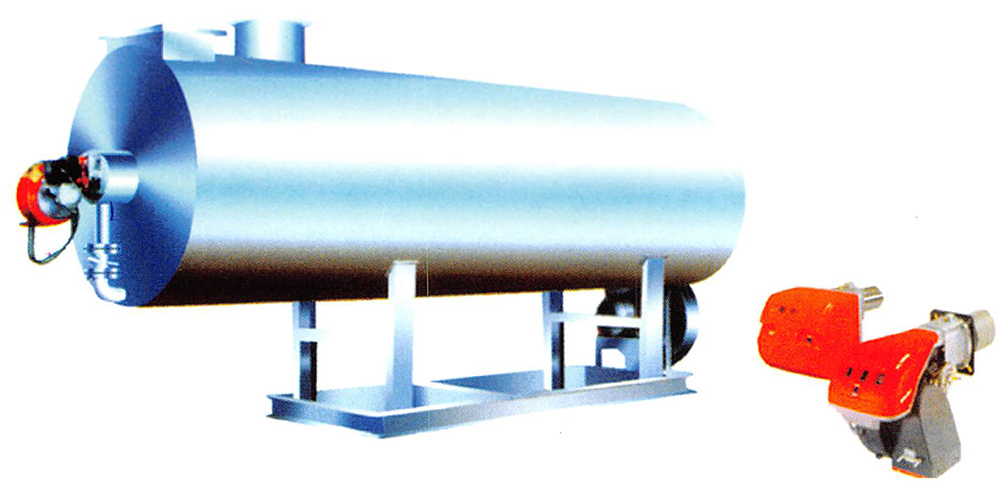

RYL Series Oil Or Fuel、Gas Fuel Hot Air Furnace

Principle
※ The fuel is burnt at firebox and the high temperature is produced. The quantity will cunduce to air to be heated through heat exchange device. Through heat exchange, the temperature of air is dropped to less than 250℃ and the air will be discharged through fan. The air to be heated is sent to hot air furnace through distribution blow fan. After absorbed heat to the rated value, the air will be sent vent of hot air. When the temperature of hot air reaches the rated upper limit, the burner can stop or turn to small fire automatically. When the temperature of hot air drops to the rated low limit, the burner can burn or turn to big fire automatically.

Application
※ It is wide used for heating, damp removing of pharmaceutical industry, chemical industy, foodstuff, textile, printing and dyeing, food, grain processing, automobile and so on.

Technical parameters

parameters/model Heat output(KJ/h) air output(m2/h) Temperature(℃) Oil consumption(kg/h) type of combustor
RYL-2.5 1.045*105 1500-560 60-200 4-5 M4
RYL-4 1.672*105 3500-930 60-200 6-7 M8
RYL-8 3.344*105 5600-1480 60-200 11.5-13.5 M12
RYL-15 6.270*105 12000-2160 60-250 21.5-25 M20
RYL-30 12.54*105 25000-4330 60-250 43-50 MP35AB
RYL-40 16.72*105 28000-5600 60-250 57-67 MP45AB
RYL-60 25.08*105 45000-8660 60-250 86-100 MP80AB
RYL-80 33.44*105 83000-12500 60-350 114-135 MP130AB
RYL-160 66.88*105 134400-23000 60-350 228-270 MP200AB
RYL-200 83.60*105 170000-28000 60-350 286-334 MP300AB

Notes:customer can choose direct-heat or indirect-heat oil fuel and gas fuel furnace.
